Secor PTP-RTI10-RRR01 Activor RF 4CH Point to Point Kit

The DFM-PTP-RTI10-RRR01 is the Point-To-Point universal 4-Channels Transmitter that designed to take any dry contacts as inputs (i.e. from button/switch/relay output/PGM output) and transmit them to ACTIVOR receiver.

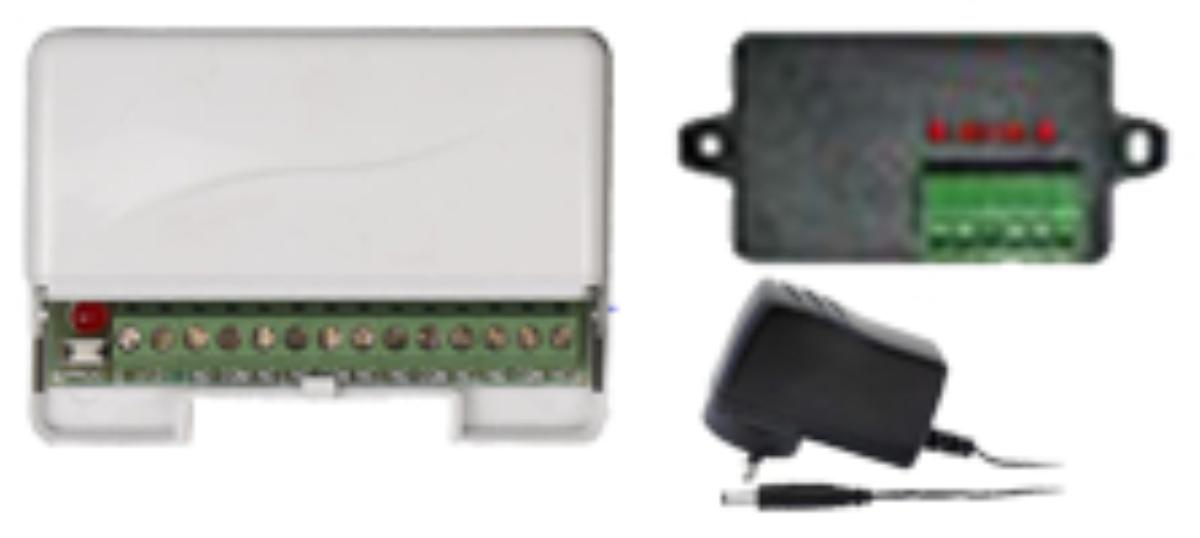

Kit Include:

• 1x DFM-RTI10 (4-Channels Transmitter)
• 1x DFM-RRR01 (4-Relay Outputs Receiver)
• 1x 12VDC/1500mA Power Supply (for powering up the DFM-RRR01)


Features:

DFM-RTI10 (Transmitter):

• Suitable for all types of dry contacts NO or NC
• Long RF range up to 100m in open area
• 4-channel hardwired inputs and 4-channel wireless outputs - each has LED indication
• Compact design to fit in limited space; dimensions: 53 x 31 x 25mm
• Voltage: 6-15VDC; current: <=30mA; transmitting power <=10mW

DFM-RRR01 (Receiver):

• 4-relay output: NC & NO
• Operating voltage: 9-15VDC, Current: 8mA standby; 100mA maximum (all relays operating)
• Standard capacity: 25 transmitter/remote
• Reverse power connection protection
• Mounting plate provided for quick receiver installation

Download

• Datasheet of DFM-PTP-RTI10-RRR01
