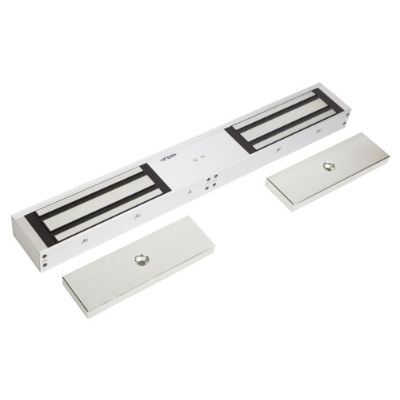

Standard Mag, 580kg, Double Non Monitored, Surface Mount, 12/24V DC

Fire tested for up to 4 hours to both A.S and B.S standards, the FEM5700 magnetic locks range from the simple "no frills" non-monitored economy line to the fully monitored, LSS, DSS and long distance Light Panel (LP) models. The holding force of the FEM5700 Series is up to 580Kg. The device can be interfaced with building management and access control systems to control access and egress to hinged doors, including fire rated models.

Features:

  • Power-off to release doors
  • Built in varistor (MOV) surge protection
  • Satin anodised aluminium housing and zinc-plated electromagnetic lock body
  • Carbon free steel armature plate
  • 4 hour fire tested
  • Anti tamper plate

Specifications:

  • Dimensions: 535 x 73 x 40mm
  • 12/24V DC Dual Voltage
  • Up to 580Kg holding force

Downloads

Download Datasheets:

  • FSH-FEM5700 Datasheet
  • FSH-FEM5700 Installation Guide
