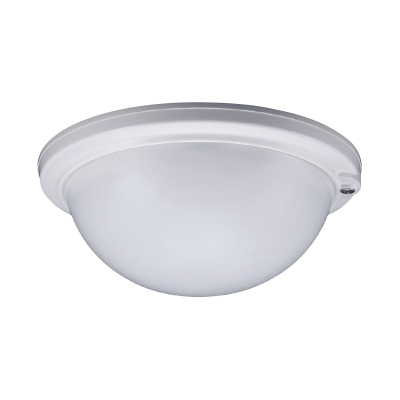

Takex Ceiling Mount Wide Angle Mirror Optic Pet Immune Sensor, 12m, 18kg

Features:

  • 18kg (39.7lb) pet immunity
  • Ceiling mount design
  • Multiple zone technology
  • Mirror optics
  • Detachable base unit with snap-in/out sensor design
  • Insect protection
  • Photo MOSFET relay for silent operation
  • Pulse count
  • LED disable switch
  • Low voltage alarm



Specifications:

  • Detection system passive infrared (Twin)
  • Alarm output: Dry contact (Semi-conductor)
  • Relay output: N/C or N/O selectable
  • Reset time: approx. 2sec.
  • 24V (AC/DC) 0.25A Max
  • Supply voltage: 10 to 18VDC (non-polarity)
  • Current consumption: 25mA
  • Ambient temperature: -15 to +55 degrees Celsius
  • Mounting position: Indoor ceiling
  • External dimensions: 147 x 60mm
  • Weight: 160g



Download

Datasheet of TAK-PA6412PI

User Manual of TAK-PA6412PI
