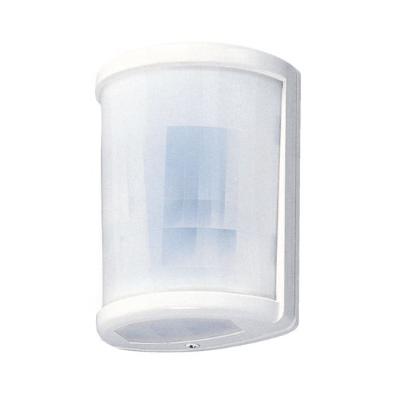

Takex Wide Angle/Long Range Detector, 2 Configuations, 16 - 20m

The Takex wall mount passive infrared sensor boasts outstanding performance in a slim compact design. Featuring interchangeable lenses and a fuzzy logic processing system, this detector reduces false alarms whilst still maintaining a high detection capability.

Features:

• Quad Element Pyro with Fuzzy Logic processing
• Pattern selectable with interchangeable 16m wide angle and 20m long range lenses
• Remote LED Control
• Selectable NO/NC
• Tamper circuit, alarm memory
• Mounting height up to 3m
• 5 Year Warranty

Specifications:

• 90 x 127 x 62.5mm
• 9 to 18V DC, 28mA)

Download

Datasheet of TAK-PA4x0
