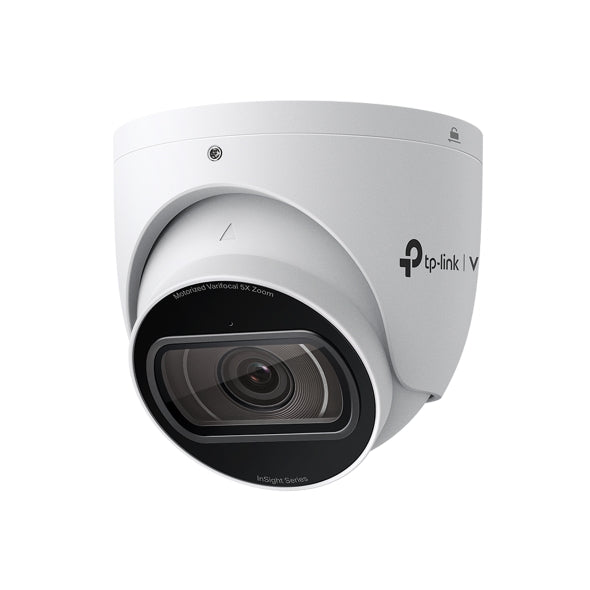

TP-Link InSight S445ZI 4MP IR Motorised Varifocal Turret Network Camera
Monitor your property in detailed 4MP resolution with the TP-Link InSight S445ZI turret network camera. Its 2.7–13.5 mm motorised varifocal lens and 5x optical zoom let you fine-tune the view, while infrared night vision reaches up to 60 metres. Human and vehicle classification helps deliver more relevant event notifications, with PoE connectivity and local microSD recording for a flexible surveillance setup.
Key features
- 4MP video: Capture footage at up to 2688 × 1520 resolution, with up to 25 fps at 50 Hz or 30 fps at 60 Hz. Image rotation at 90° or 270° limits the frame rate to 20 fps.
- 5x optical zoom: Adjust the view with a 2.7–13.5 mm F1.6 motorised varifocal lens, providing a horizontal field of view from 29.6° to 102°.
- 60 m IR night vision: Four 850 nm infrared LEDs support monitoring in darkness, with automatic, scheduled, always-on or always-off control.
- Human and vehicle classification: Distinguish people and vehicles from other objects for more relevant event notifications.
- Smart event detection: Monitor intrusion, line crossing, region entry and exit, removed or abandoned objects, loitering, abnormal sound and scene changes.
- Audio and alarm interfaces: A built-in microphone, one audio input, one audio output, one alarm input and one alarm output support monitoring and integration. Two-way audio requires an external speaker, as no speaker is built in.
- Efficient recording: H.265+, H.265, H.264+ and H.264 main-stream compression provide options for managing storage and network bandwidth. The sub-stream supports H.265 and H.264.
- Image enhancement: 120 dB true WDR, backlight compensation, highlight compensation, 3D digital noise reduction and SmartIR help improve footage in challenging lighting.
- Outdoor protection: Metal construction with IP67 weatherproof and IK10 vandal-resistant ratings, and an operating temperature range of -30°C to 60°C.
- Flexible management and storage: Manage through the VIGI App, VIGI Security Manager, Web UI, VIGI VMS or VIGI Cloud VMS. An onboard microSD slot supports cards up to 512 GB. MicroSD card is not included.
Technical specifications
| Model | InSight S445ZI |
|---|---|
| Maximum resolution | 2688 × 1520, 4MP |
| Lens | 2.7–13.5 mm motorised varifocal, F1.6, 5x optical zoom |
| Horizontal field of view | 29.6°–102° |
| Night vision | Up to 60 m IR; four 850 nm infrared LEDs |
| Wired connection | 1 × RJ45 10/100 Mbps Ethernet port with PoE |
| Interoperability | ONVIF Profile S/T/G |
| Onboard storage | microSD card up to 512 GB, not included |
| Audio | Built-in microphone; 1 audio input and 1 audio output; external speaker required for two-way audio |
| Alarm interfaces | 1 input and 1 output |
| Power supply | 802.3af/at PoE, class 0; or 12 V DC ±5% with a 5.5 mm coaxial power plug |
| Maximum power consumption | 12 W via PoE; 10.8 W via 12 V DC |
| Housing | Metal; IP67 weatherproof and IK10 vandal-resistant |
| Operating temperature | -30°C to 60°C |
| Manual angle adjustment | 360° pan, 0–77° tilt and 360° rotation |
| Dimensions | Ø112.3 × 92.5 mm |
| Net weight | 0.71 kg |
| Gross weight | 0.96 kg |
What's included
VIGI network camera, quick start guide, waterproof cable attachments and mounting accessories. Cable routing options include a dropped ceiling or the camera's side outlet.
Connection note: Connect using Ethernet and power the camera through compatible PoE equipment or the specified 12 V DC supply. The motorised lens adjusts zoom; the camera's pan, tilt and rotation angles are adjusted manually.
