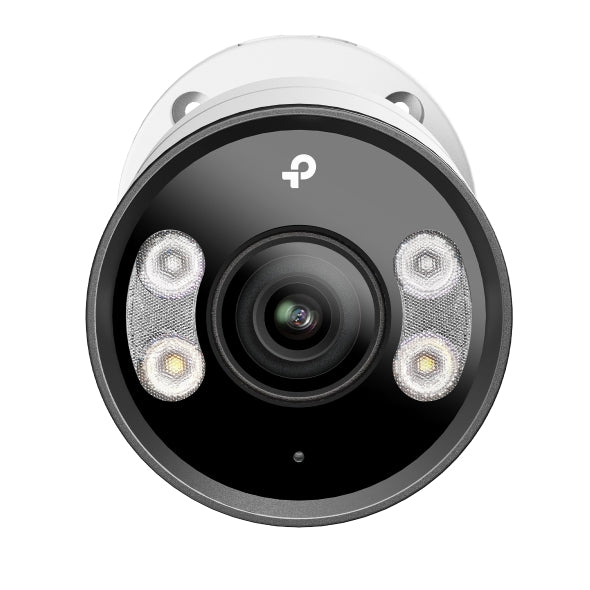

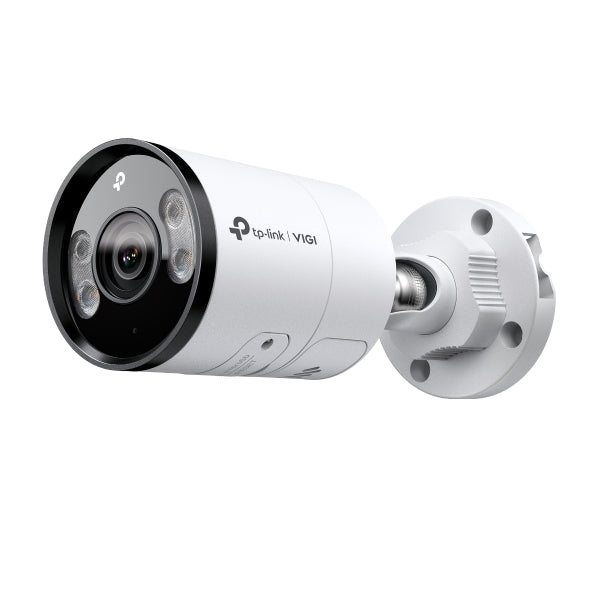

TP-Link VIGI C385 8MP Outdoor Full-Colour Bullet IP Camera
Monitor your property in detailed 4K resolution with the TP-Link VIGI C385 outdoor bullet security camera. Full-colour night vision, human and vehicle classification and active defence help you keep watch over key areas day and night. Choose a 2.8mm or 4mm lens, speak through the built-in two-way audio and record locally to a microSD card. Connect over Ethernet and power the camera using PoE or 12V DC.
Key features
- 4K (8MP) video: Capture footage at up to 3840 × 2160 resolution and 25 fps. Image rotation at 90° or 270°, or enabling 120dB WDR, limits the frame rate to 20 fps.
- Full-colour night vision: An F1.6 lens and white supplemental lights support colour monitoring in darkness. Both infrared and white-light illumination reach up to 30 metres.
- Choice of lens: Select the 2.8mm lens for a wider 111.4° horizontal view, or the 4mm lens for a narrower 91.5° horizontal view.
- Human and vehicle classification: Distinguish people and vehicles from other objects for more relevant event notifications.
- Smart event detection: Monitor intrusion, line crossing, region entry and exit, loitering, abandoned or removed objects, people, vehicles, abnormal sound and scene changes. Motion detection and camera-tampering detection are also supported.
- Active deterrence: Trigger an audible warning and flashing white light when events are detected.
- Two-way audio: Listen and speak using the built-in microphone and speaker, with environmental noise filtering.
- Efficient recording: H.265+, H.265, H.264+ and H.264 main-stream compression provide options for managing storage and network bandwidth. The sub-stream supports H.265 and H.264.
- Image enhancement: 120dB wide dynamic range, SmartIR, backlight compensation, highlight compensation and 3D digital noise reduction help improve footage in challenging lighting. When People & Vehicle Analytics is enabled, only digital WDR is supported.
- IP67 outdoor protection: Metal housing with an operating temperature range of -30°C to 60°C.
- Flexible management and storage: Manage through the web interface, VIGI app, VIGI Security Manager, VIGI NVR or VMS. The onboard microSD slot supports cards up to 512GB. MicroSD card is not included.
- PoE or DC power: Use IEEE 802.3af/at PoE or a 12V DC supply to suit your installation.
Technical specifications
| Model | VIGI C385 (2.8mm / 4mm) |
|---|---|
| Image sensor | 1/2.7-inch progressive scan CMOS |
| Maximum resolution | 3840 × 2160 (8MP) |
| Lens | 2.8mm or 4mm fixed focal length; F1.6; M12 × P0.5 mount |
| Field of view, 2.8mm | 111.4° horizontal, 58.8° vertical, 134° diagonal |
| Field of view, 4mm | 91.5° horizontal, 46.1° vertical, 109.6° diagonal |
| Minimum illumination | 0.005 lux; 0 lux with IR or white light |
| Shutter speed | 1/3 to 1/10000 second; slow shutter supported |
| Day/night | IR cut filter; unified, scheduled or automatic switching |
| Manual angle adjustment | Pan 0–360°; tilt 0–90°; rotation 0–360°. Not motorised pan/tilt. |
| DORI distances, 2.8mm | Detect 85m; observe 35m; recognise 17m; identify 8m |
| DORI distances, 4mm | Detect 107m; observe 44m; recognise 21m; identify 11m |
| Illumination | Two 850nm IR LEDs and two white LEDs; up to 30m range for each type; auto, scheduled, always-on or always-off control |
| Main-stream resolutions | 3840 × 2160; 2560 × 1440; 2304 × 1296; 2048 × 1280; 1920 × 1080; 1280 × 720 |
| Sub-stream resolutions | 704 × 576; 640 × 480; 352 × 288; 320 × 240 |
| Frame rate | Up to 25 fps at 50Hz or 60Hz; up to 20 fps with 120dB WDR enabled or 90°/270° image rotation |
| Bit rate | Main stream: 256Kbps–6Mbps; sub-stream: 64–512Kbps; CBR or VBR |
| Image controls | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance and infrared overexposure prevention |
| Privacy and ROI | Up to four privacy masks; one region of interest; on-screen display supported |
| Signal-to-noise ratio | ≥52dB |
| Audio | Built-in microphone and speaker; two-way audio; environmental noise filtering; 8kHz sampling; 64Kbps G.711 A-law |
| Wired connection | 1 × RJ45 10/100Mbps Ethernet port with PoE |
| Interoperability | ONVIF, Profile S |
| Network security | Password protection, HTTPS encryption, IP address filtering and digest authentication |
| Simultaneous live view | Three main streams and three sub-streams |
| Basic events | Motion detection, video tampering detection and illegal login exception |
| Alarm linkage | Memory card recording, push messages, audible warnings and flashing white light |
| People & Vehicle Analytics | Attribute-based search and filtering; requires specified VIGI software. Only digital WDR is supported when enabled. |
| Power supply | 12V DC ±5%, 5.5mm coaxial plug; or PoE 802.3af/at, class 0 |
| Maximum power consumption | 10.5W on DC; 11.5W on PoE |
| Housing | Metal; IP67 ingress protection |
| Operating conditions | -30°C to 60°C; humidity up to 95%, non-condensing |
| Storage conditions | -40°C to 60°C; humidity up to 95%, non-condensing |

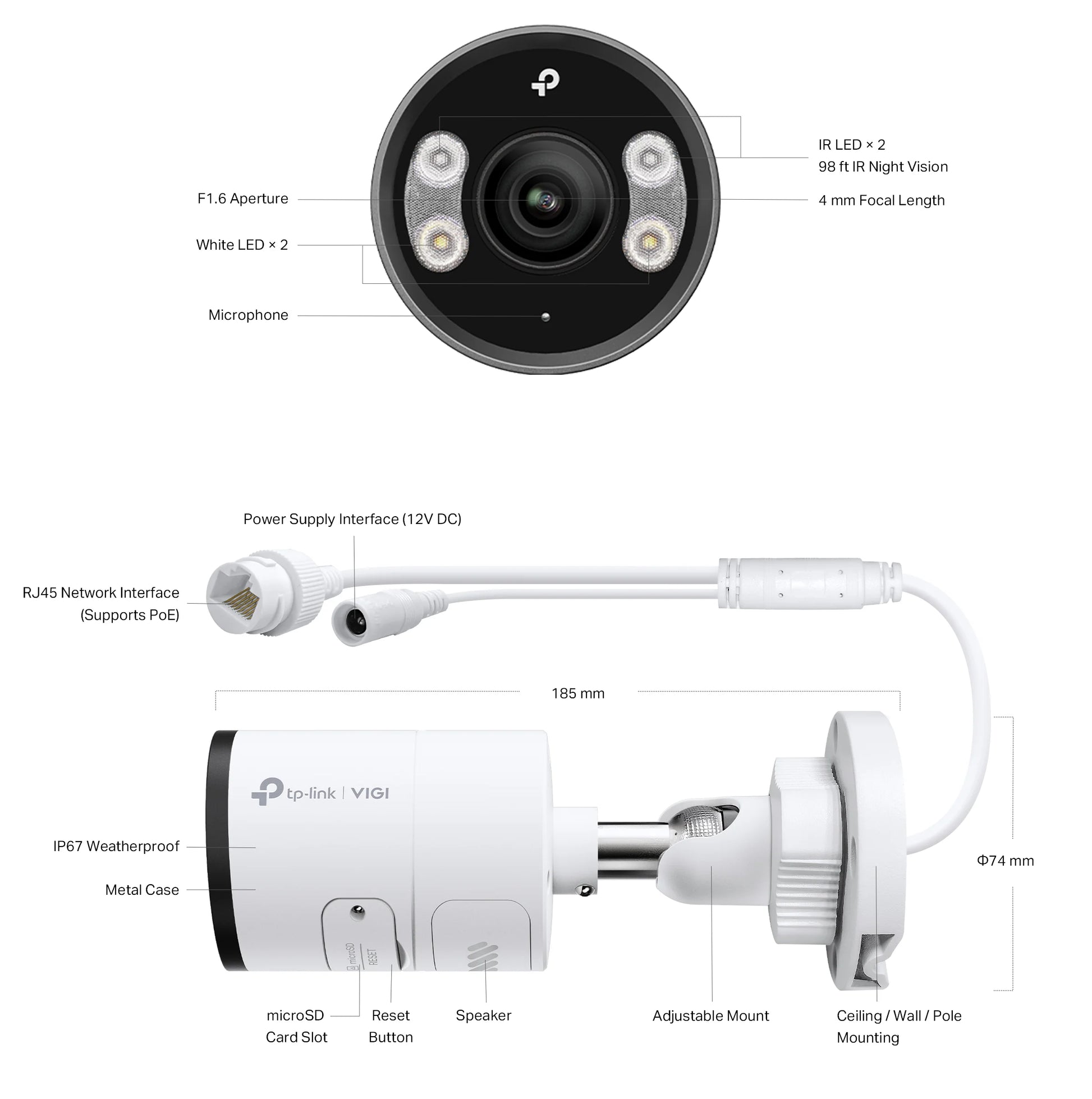

| Dimensions (L × W × H) | 74 × 184 × 74mm |
| Net weight | 0.525kg |

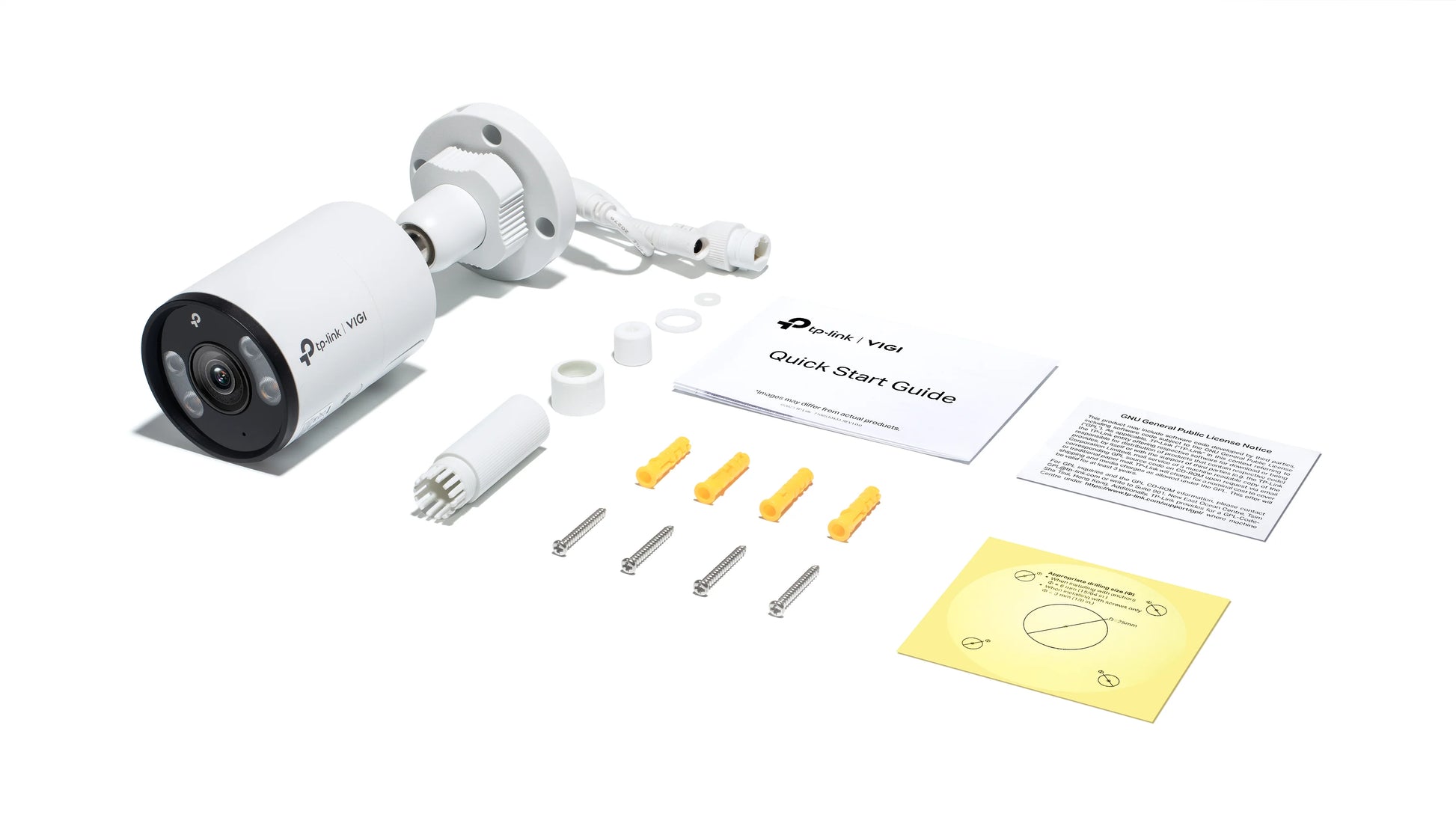

What's included
VIGI network camera, quick start guide, waterproof cable attachments and mounting accessories.
Connection note: This camera uses a wired Ethernet network connection and requires PoE or 12V DC power. Lens selection determines the field of view; camera angle adjustment is manual.
