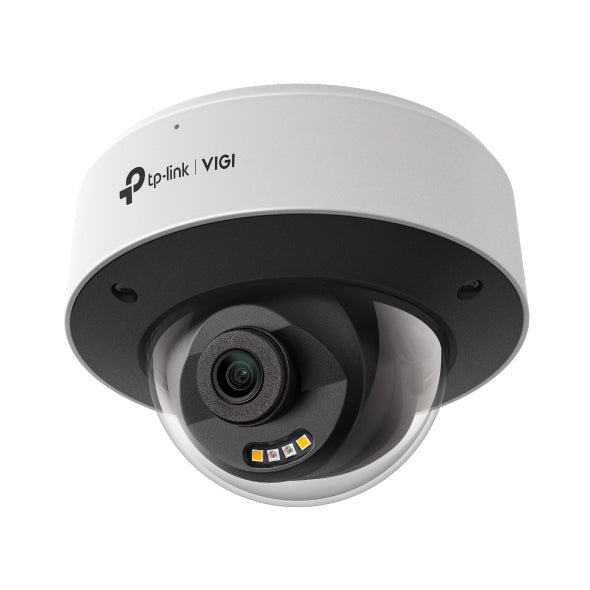

TP-Link InSight S285 8MP Full-Colour Dome Network Camera, 2.8mm / 4mm
Monitor your property in detailed 4K resolution with the TP-Link InSight S285 dome security camera. Full-colour night vision, human and vehicle classification and smart event detection help you keep watch over key areas day and night. The 2.8mm lens provides a wide 110° horizontal view, while built-in two-way audio lets you listen and speak. Connect over Ethernet, power with PoE or 12V DC and record locally to a microSD card.
Key features
- 4K (8MP) video: Capture footage at up to 3840 × 2160 resolution and 25 fps. Image rotation at 90° or 270°, or enabling HDR, limits the frame rate to 20 fps.
- 24-hour full-colour monitoring: An F1.6 lens and white supplemental lights support colour monitoring in darkness. Infrared and white-light illumination each reach up to 30 metres.
- Choice of lens: Select the 2.8mm lens for a 110° horizontal view, or the 4mm lens for a narrower 88° horizontal view.
- Human and vehicle classification: Distinguish people and vehicles from other objects for more relevant motion alerts.
- People & Vehicle Analytics: Search and filter people or vehicles by different attributes to make post-event searches easier. Requires specified VIGI software.
- Smart event detection: Monitor intrusion, line crossing, region entry and exit, abandoned or removed objects, loitering, people, vehicles, abnormal sound and scene changes. Motion detection, camera tampering and illegal login detection are also supported.
- Active deterrence: Trigger audible warnings and flashing white lights when events are detected.
- Two-way audio: Listen and speak using the built-in microphone and speaker, with environmental noise filtering.
- Efficient recording: H.265+, H.265, H.264+ and H.264 main-stream compression provide options for managing storage and bandwidth. The microSD slot supports cards up to 512GB; card not included.
- Smart image enhancement: 120dB WDR, SmartIR, backlight compensation, highlight compensation and 3D digital noise reduction help improve footage in challenging lighting. Only digital WDR is supported when People & Vehicle Analytics is enabled.
- Outdoor and vandal-resistant housing: Metal construction with IP67 weather protection and IK10 impact protection, rated for operation from -30°C to 60°C.
- Flexible management: Supports VIGI App, VIGI Security Manager, Web UI, VIGI VMS and VIGI Cloud VMS, with ONVIF Profiles S, T and G.
Technical specifications
| Model | InSight S285 (2.8mm / 4mm) |
|---|---|
| Image sensor | 1/2.7-inch progressive scan CMOS |
| Maximum resolution | 3840 × 2160 (8MP) |
| Lens | 2.8mm or 4mm fixed focal length; F1.6; M12 × P0.5 mount |
| Field of view, 2.8mm | 110° horizontal, 58.1° vertical, 133.5° diagonal |
| Field of view, 4mm | 88° horizontal, 46° vertical, 105.4° diagonal |
| Minimum illumination | 0.005 lux; 0 lux with IR or white light |
| Shutter speed | 1/3 to 1/10000 second; slow shutter supported |
| Day/night | IR cut filter; unified, scheduled or automatic switching |
| Manual angle adjustment | Pan 0–346°; tilt 0–75°; rotation 0–355° |
| DORI distances, 2.8mm | Detect 85m; observe 35m; recognise 17m; identify 8m |
| DORI distances, 4mm | Detect 107m; observe 44m; recognise 21m; identify 11m |
| Illumination | Two 850nm IR LEDs and two white LEDs; up to 30m range for each type; auto, scheduled, always-on or always-off control |
| Frame rate | Up to 25 fps at 50Hz or 60Hz; up to 20 fps with HDR enabled or 90°/270° image rotation |
| Main-stream resolutions | 3840 × 2160; 2560 × 1440; 2304 × 1296; 2048 × 1280; 1920 × 1080; 1280 × 720 |
| Sub-stream resolutions | 848 × 480; 704 × 576; 640 × 480; 640 × 360; 352 × 288; 320 × 240 |
| Video compression | Main stream: H.265+, H.265, H.264+, H.264; sub-stream: H.265, H.264 |
| Video bit rate | Main stream: 256Kbps–8Mbps; sub-stream: 64–512Kbps; CBR or VBR |
| Wide dynamic range | 120dB; digital WDR only when People & Vehicle Analytics is enabled |
| Image enhancement | BLC, 3D DNR, HLC and SmartIR |
| Privacy and ROI | Up to four privacy masks; one region of interest; on-screen display supported |
| Signal-to-noise ratio | ≥52dB |
| Audio | Built-in microphone and speaker; two-way audio; environmental noise filtering; 8kHz sampling; 64Kbps G.711 A-law |
| External audio/alarm interfaces | None listed |
| Wired connection | 1 × RJ45 10/100Mbps Ethernet port with PoE |
| Interoperability | ONVIF Profiles S, T and G |
| Network security | Password protection, HTTPS encryption, IP address filtering and digest authentication |
| Simultaneous live view | Three main streams and three sub-streams |
| Onboard storage | MicroSD card up to 512GB; card not included |
| Alarm linkage | Memory card recording, push messages, audible warnings and flashing white lights |
| Power supply | 12V DC ±5%, 5.5mm coaxial power plug; or PoE 802.3af/at, class 0 |
| Maximum power consumption | 11W on DC; 12.3W on PoE |
| Housing and protection | Metal; IP67 weather protection; IK10 impact protection |
| Operating conditions | -30°C to 60°C; humidity up to 95%, non-condensing |
| Storage conditions | -40°C to 60°C; humidity up to 95%, non-condensing |
| Dimensions | 122 × 122 × 89mm |
| Net weight | 0.62kg |
What's included
VIGI network camera, quick start guide, waterproof cable attachments and mounting accessories. MicroSD card is not included.
Connection note: This camera uses wired Ethernet and requires PoE or the specified 12V DC supply. Camera angle adjustment is manual, not motorised pan and tilt.
