TP-Link InSight S455 Ten-Camera 5MP Full-Colour Turret Kit with 16-Channel NVR
Kit at a glance

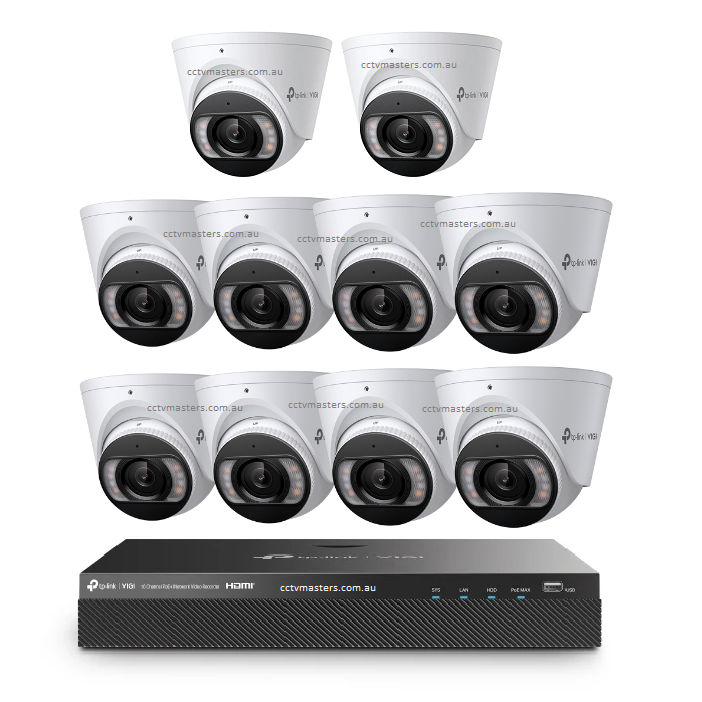

TP-Link InSight Kit, 10 x 5MP Full-Color Turret Network Camera, 16CH NVR.
Included components

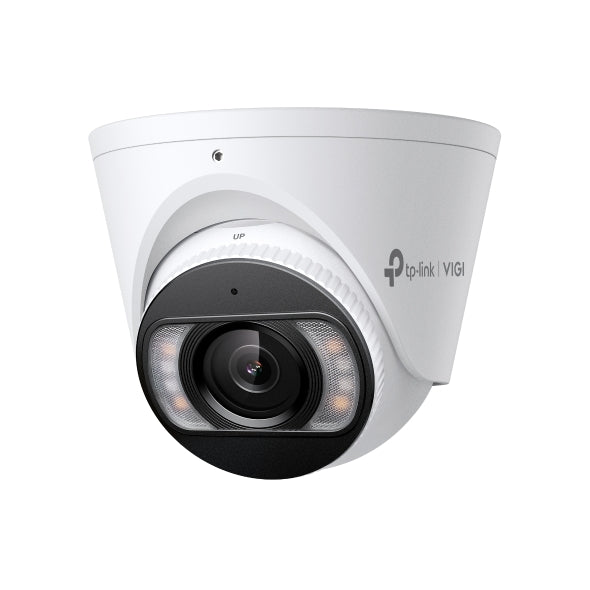

- 10 × InSight S455 5MP full-colour turret cameras with 2.8mm lenses.
- 1 × recorder listed as NVR2016H-16P, 16-channel PoE+ NVR. See the model clarification below.
- HDD option available; no HDD is included.
Before you order: Check the included storage and any available upgrade selections for your chosen configuration before ordering. Confirm the camera quantity, recorder configuration and any cabling or monitor requirements in the details below.
Monitor entrances, driveways and outdoor areas with ten TP-Link InSight S455 5MP full-colour turret cameras and a listed sixteen-channel recorder. Each camera combines a wide-angle 2.8mm lens, human and vehicle classification, two-way audio and active deterrence to help you keep watch over your property.
Important: This kit does not include a hard drive (HDD). A suitable HDD is required for recorder storage.
Recorder model clarification: This kit lists an NVR2016H-16P, but the linked recorder page supplies an NVR2016H (UN) 2.0 datasheet. That document describes a recorder connected to cameras through a switch, with two SATA interfaces, whereas the kit originally lists one HDD bay and PoE+. The supplied recorder model, built-in PoE availability, HDD bay count, supported HDD capacity and connection requirements need confirmation before purchase. Specifications for the NVR2016H have not been presented as specifications for the listed NVR2016H-16P.
Key features
- Ten 5MP cameras: Each camera captures up to 2880 × 1620 resolution at up to 25 fps at 50Hz or 30 fps at 60Hz. Recorder decoding and playback capacity are separate.
- Full-colour night monitoring: F1.6 lenses and white supplemental lighting support colour images in darkness. Infrared and white-light illumination each reach up to 30m.
- Wide-angle coverage: Each 2.8mm lens provides a 111.4° horizontal, 58.8° vertical and 134° diagonal field of view.
- Human and vehicle classification: Distinguish people and vehicles from other objects for more relevant event notifications.
- People & Vehicle Analytics: Attribute-based searches require specified VIGI software. Only digital WDR is supported when this analytics function is enabled.
- Smart detection: Camera events include intrusion, line crossing, region entry and exit, abandoned or removed objects, loitering, people, vehicles, abnormal sound and scene changes, plus motion, tampering and illegal login detection.
- Active deterrence and two-way audio: Listen and speak through the built-in microphone and speaker, and trigger audible warnings and flashing white lights.
- Smart image enhancement: 120dB WDR, BLC, 3D DNR, HLC and SmartIR help improve footage in challenging lighting.
- Efficient compression: Camera main streams support H.265+, H.265, H.264+ and H.264 to help manage bandwidth and storage.
- Optional local camera storage: Each camera supports a microSD card up to 512GB. Cards are not included.
- Outdoor-ready cameras: IP67-rated metal housings operate from -30°C to 60°C. This camera rating does not apply to the recorder.
Camera technical specifications
| Included cameras | 10 × InSight S455 (2.8mm) |
|---|---|
| Sensor and resolution | 1/2.7-inch progressive scan CMOS; 2880 × 1620 (5MP) |
| Lens | Fixed 2.8mm, F1.6; M12 × P0.5 mount |
| Field of view | 111.4° horizontal; 58.8° vertical; 134° diagonal |
| Minimum illumination | 0.005 lux; 0 lux with IR or white light |
| Illumination | Four 850nm IR LEDs and four white LEDs; each type up to 30m; automatic, scheduled, always-on or off control |
| Shutter and day/night | 1/3–1/10000 second; slow shutter; IR cut filter |
| Manual adjustment | Pan 0–360°; tilt 0–75°; rotation 0–360° |
| DORI distances | Detect 64m; observe 27m; recognise 13m; identify 6m |
| Camera frame rate | Up to 25 fps at 50Hz or 30 fps at 60Hz; 90°/270° image rotation limits frame rate to 20 fps |
| Main-stream resolutions | 2880 × 1620; 2688 × 1520; 2304 × 1296; 2048 × 1280; 1920 × 1080; 1280 × 720 |
| Sub-stream resolutions | 848 × 480; 704 × 576; 640 × 480; 640 × 360; 352 × 288; 320 × 240 |
| Compression | Main stream: H.265/H.265+/H.264/H.264+; sub-stream: H.265/H.264 |
| Video bitrate | Main: 256Kbps–6Mbps; sub: 64–512Kbps; CBR/VBR |
| Image enhancement | 120dB WDR, BLC, 3D DNR, HLC, SmartIR; digital WDR only with People & Vehicle Analytics; signal-to-noise ratio ≥52dB |
| Privacy and ROI | Four privacy masks; one region of interest |
| Audio | Built-in microphone and speaker; two-way audio; noise filtering; 8kHz sampling; 64Kbps G.711 A-law |
| Network | One 10/100Mbps PoE Ethernet port; ONVIF Profiles S/T/G |
| Local storage | MicroSD up to 512GB, not included |
| Management | VIGI App, Security Manager, NVR, web, VMS Local and Cloud VMS |
| Camera power | 12V DC ±5%, maximum 11W, 5.5mm plug; or 802.3af/at PoE class 0, maximum 12W |
| Housing and environment | Metal; IP67; -30°C to 60°C; humidity ≤95%, non-condensing |
| Dimensions and weight | 111 × 111 × 83.7mm; 0.48kg per camera |
Recorder details and verification status
| Kit-listed recorder | NVR2016H-16P, described in the kit listing as a 16-channel PoE+ NVR |
|---|---|
| Linked recorder datasheet | NVR2016H (UN) 2.0, a different model designation |
| HDD inclusion | No HDD included |
| Storage configuration | Original kit lists one HDD bay; linked NVR2016H datasheet lists two SATA interfaces. Confirm the supplied recorder's bay count and supported drive capacity. |
| PoE and connections | Confirm built-in PoE ports, total power budget and whether an external PoE switch is required for the supplied model. |
| Recording, decoding and playback | Exact resolution, frame-rate, bandwidth and simultaneous playback limits require the matching supplied-recorder datasheet. |
Connection and playback note: The S455 cameras use wired Ethernet and support PoE or 12V DC power. Confirm the recorder model and power arrangement before installation. Do not assume that sixteen input channels guarantee simultaneous display or playback of all ten cameras at full 5MP resolution and maximum frame rate.
Freight may apply at checkout.
