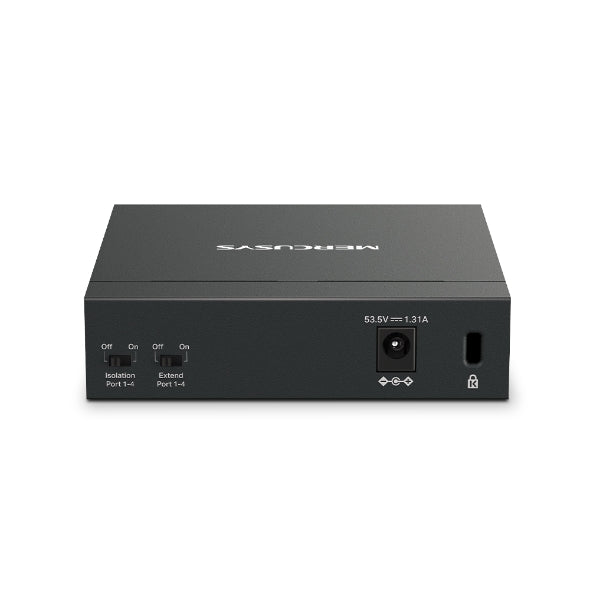

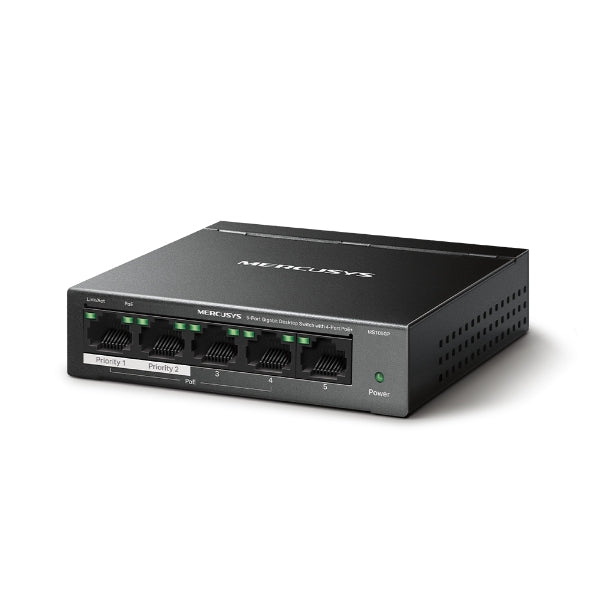

TP-Link Mercusys MS105GP – 5-Port Gigabit Desktop Switch with 4-Port PoE+

The Mercusys MS105GP is a compact, plug-and-play gigabit PoE+ switch purpose-built for IP camera and access control installations. With four PoE+ ports delivering up to 30W per port and a 250m extended range mode, it's an ideal backbone switch for small CCTV and security networks — no configuration required.

Key Features

• 5× 10/100/1000 Mbps full gigabit RJ45 ports
• 4× PoE+ ports — up to 30W per port, 65W total PoE budget
• Extend Mode — increases PoE transmission distance to 250m
• Isolation Mode — one-click traffic separation for security and stability
• IEEE 802.3af/at compliant — compatible with IP cameras, VoIP phones, and APs
• Durable metal casing for efficient heat dissipation and long service life
• Plug and play — no software or configuration needed

Downloads

MS105GP Datasheet (PDF)
