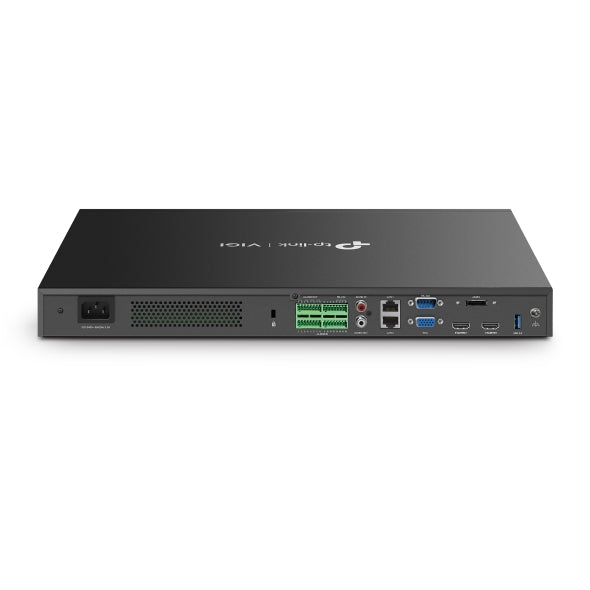

TP-Link VIGI NVR4016H 16-Channel Network Video Recorder, Non-PoE
Bring up to sixteen compatible IP cameras together with the TP-Link VIGI NVR4016H. With 320Mbps incoming and outgoing bandwidth, four SATA storage bays and independent display outputs, this recorder gives you a central place to monitor your premises, review events and export the footage you need.
No built-in PoE ports: Cameras require a suitable external PoE switch, injectors or their own compatible power supplies. The recorder's two Ethernet ports are network connections, not camera power outputs.
Key features
- Sixteen camera channels: Connect up to sixteen compatible IP cameras and select 1/4/6/8/9/16-view layouts, within decoding limits.
- High-bandwidth networking: 320Mbps incoming and 320Mbps outgoing bandwidth support multi-camera recording and access within those limits.
- 4K HDMI output: HDMI1 supports up to 3840 × 2160 at 30Hz. HDMI2 and VGA each support up to 1920 × 1080 at 60Hz.
- Independent displays: Use HDMI1 with HDMI2, or HDMI1 with VGA, for independent outputs. HDMI2 and VGA cannot operate simultaneously; HDMI2 takes precedence when both are connected.
- Four-bay storage: Install up to four HDDs, each up to 16TB. Software RAID 1 and RAID 5 are supported; RAID reduces usable capacity and is not a substitute for a separate backup.
- Efficient compression: H.265+/H.265/H.264+/H.264 support helps manage recording storage and bandwidth with compatible cameras and settings.
- Flexible playback: Search recordings using instant, regular, tag or event playback, then review frame by frame, zoom digitally or export a clip.
- Smart event support: Compatible cameras can provide motion, tampering, scene change, line crossing, intrusion, region entry/exit, loitering, abandoned/removed object, vehicle, human and abnormal sound events. Available functions depend on camera support.
- Smart search: The datasheet advertises searching clips by motion and object, including person/vehicle characteristics. Availability depends on compatible cameras and supported system features.
- Remote management: Manage the NVR and connected cameras through the web interface, NVR interface, VIGI App and VIGI Security Manager.
- Alarm integration: Sixteen alarm inputs and four alarm outputs provide connections for suitable external detection and alarm devices.
- Audio connectivity: RCA audio input and output support two-way audio with appropriate connected equipment. The recorder has no built-in speaker.
- Camera interoperability: ONVIF Profile S and CGI support compatible camera integration; individual features depend on the connected camera.
Technical specifications
| Model | VIGI NVR4016H (UN) 1.0 |
|---|---|
| IP video inputs | 16 channels; no built-in PoE camera ports |
| Bandwidth | 320Mbps incoming; 320Mbps outgoing |
| HDMI1 output | 3840 × 2160 at 30Hz; 1920 × 1080, 1680 × 1050, 1440 × 900, 1280 × 1024 or 1280 × 720 at 60Hz |
| HDMI2 output | 1920 × 1080, 1680 × 1050, 1440 × 900, 1280 × 1024 or 1280 × 720 at 60Hz |
| VGA output | 1920 × 1080, 1680 × 1050, 1440 × 900, 1280 × 1024 or 1280 × 720 at 60Hz |
| Display operation | Independent HDMI1/HDMI2 or HDMI1/VGA output; HDMI2 and VGA cannot operate simultaneously |
| Multi-view layouts | 1/4/6/8/9/16 |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Audio compression | G.711A/G.711U/G.726 |
| Recording resolutions | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding capacity | Datasheet overview states 16 × 2MP or 8 × 4MP channels; frame rate is not specified there. See performance note below. |
| Synchronous playback | Up to 16 channels; fewer channels, or none, may play simultaneously if total resolution exceeds 32MP |
| Recording modes | Manual, scheduled and motion detection |
| Playback modes | Instant, regular, tag and event |
| Playback functions | Play/pause/stop, fast forward/backward, frame-by-frame, full screen, video clip/export, digital zoom, recording lock and audio on/off |
| Backup modes | Regular and video clip backup |
| Storage interfaces | 4 × SATA; up to 16TB per HDD; HDDs not included |
| RAID | Software RAID 1 and RAID 5 |
| Network interfaces | 2 × RJ45 10/100/1000Mbps self-adaptive Ethernet |
| USB | Front: 2 × USB 2.0; rear: 1 × USB 3.0 |
| Audio interfaces | 1 × RCA input; 1 × RCA output; no built-in speaker |
| Alarm interfaces | 16 inputs / 4 outputs |
| Other connections | RS232 serial interface, AC power jack, reset button and eSATA interface |
| Interoperability | ONVIF Profile S; CGI |
| Mobile access | Android and iOS |
| Listed browser support | Chrome 57+, Firefox 52+, Edge 91+ |
| Alarm events | Camera-dependent motion, tampering, scene change, line crossing, intrusion, region entry/exit, loitering, abandoned/removed object, vehicle, human, abnormal sound and Smart Frame |
| Anomaly alarms | Video loss, offline/IP conflict, disk, login and fan exceptions; camera-related functions require suitable connected cameras |
| Alarm linkage | Recording, white-light alarm, buzzer, log and audible alarm; camera-dependent functions require compatible cameras |
| Power supply | 100–240V AC, 50–60Hz, 1.5A |
| Listed power consumption | 6.95W without disk; 48.38W with disk |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -40°C to 70°C |
| Humidity | Operating and storage: 10–90% RH, non-condensing |
| Dimensions | 440 × 330 × 44mm |
| Weight | Net 4.0kg; gross 5.0kg |
Performance note: Recording resolution, monitor output resolution and simultaneous decoding capacity are different limits. The supplied datasheet states 16 × 2MP or 8 × 4MP decoding in its overview, but does not specify a frame rate for those figures. The previous listing's 10 × 3MP / 16 × 1080p at 25fps claim is not confirmed by this document. Do not assume sixteen 8MP streams can be displayed or played back at full resolution simultaneously. Its playback footnote warns that fewer than sixteen channels, or none, may play if the total resolution exceeds 32MP.
