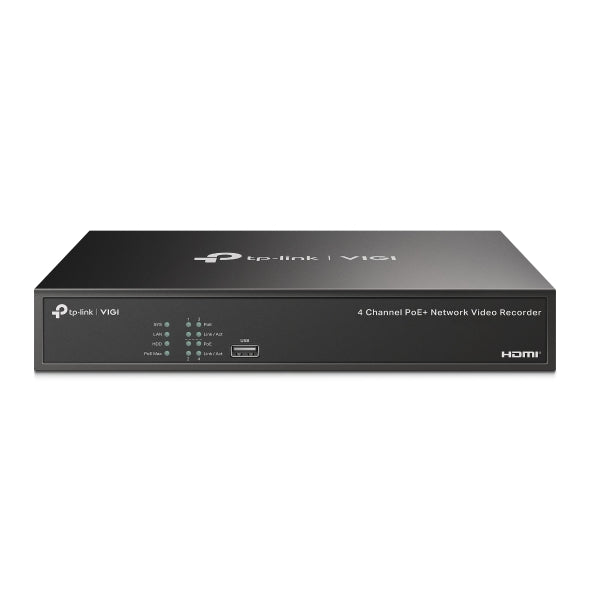

TP-Link VIGI NVR1004H-4P, NVR 4CH PoE+ VIGI Network Video Recorder

TP-Link VIGI NVR1004H-4P, NVR 4CH PoE+ VIGI Network Video Recorder

Availbility: In Stock
Product Code: TP-VIGI-NVR1004H-4P
$160.00
$222.00 $160.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details
Free Shipping on
Order Over $300*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support

TP-Link VIGI NVR1004H-4P 4-Channel PoE+ Network Video Recorder

Bring up to four compatible IP cameras together with the TP-Link VIGI NVR1004H-4P. Four built-in PoE+ ports carry camera power and data over Ethernet, while 4K HDMI output, recording support up to 8MP and remote monitoring help you keep an eye on your home or business. Review events locally or remotely, with recording and playback settings tailored to the recorder's bandwidth and decoding limits.

Key features

  • Four IP camera channels: Connect up to four compatible cameras for a compact home or business system.
  • Built-in PoE+: Four IEEE 802.3af/at ports share a 53W power budget, with up to 30W per port. Compatible cameras can receive power and data through one Ethernet cable, without a separate camera power adapter. The recorder itself requires its supplied power adapter.
  • 4K HDMI output: View footage on a compatible display at up to 3840 × 2160 at 30Hz. HDMI and VGA can output simultaneously.
  • Recording up to 8MP: Supports compatible 8MP camera streams within incoming bandwidth limits. Recording resolution is not the same as simultaneous decoding capacity.
  • Flexible playback: Up to four-channel synchronous playback, subject to resolution and decoding limits. See the conflicting datasheet footnotes below before relying on maximum playback performance.
  • H.265+ compression: Supports H.265+/H.265/H.264+/H.264 to help manage storage and network use, depending on camera and encoding settings.
  • Continuous or event recording: Manual, scheduled and motion-based recording options support different monitoring needs. Recording duration depends on HDD capacity, bitrate, camera count and settings.
  • VIGI plug and play: New, unused VIGI IP cameras can be added and activated automatically with a new NVR.
  • Remote monitoring: Use the VIGI app and VIGI Security Manager to monitor and manage your system.
  • ONVIF compatibility: ONVIF Profile S and CGI support compatible third-party camera connections; available functions depend on the connected camera.
  • Voice intercom: Two-way audio support is available with suitable connected audio equipment and compatible cameras.
  • 80Mbps incoming bandwidth: Supports camera stream input within an 80Mbps aggregate limit, with 60Mbps outgoing bandwidth. The datasheet's laboratory example uses four 4MP VIGI cameras.

Technical specifications

Model VIGI NVR1004H-4P
IP video inputs 4 channels
Bandwidth 80Mbps incoming; 60Mbps outgoing
PoE+ connections 4 × 10/100Mbps RJ45; IEEE 802.3af/at
PoE budget 53W total; maximum 30W per port; actual available budget varies with operating conditions
HDMI output Up to 3840 × 2160 at 30Hz
VGA output Up to 1920 × 1080 at 60Hz
Display operation Simultaneous HDMI and VGA output; up to four-channel display
Video compression H.265+/H.265/H.264+/H.264
Recording resolution support 8MP/5MP/4MP/3MP and lower supported resolutions
Decoding at 25 fps 2 × 8MP or 4 × 4MP channels
Decoding at 30 fps 4 × 4MP or 3 × 5MP channels
Synchronous playback Up to 4 channels, subject to resolution limits and conflicting datasheet footnotes described below
Recording modes Manual, scheduled and motion detection
Playback functions Instant, regular, tag and event playback; variable speed, frame-by-frame, digital zoom and clip export
Storage One SATA interface; HDD up to 10TB; HDD not included

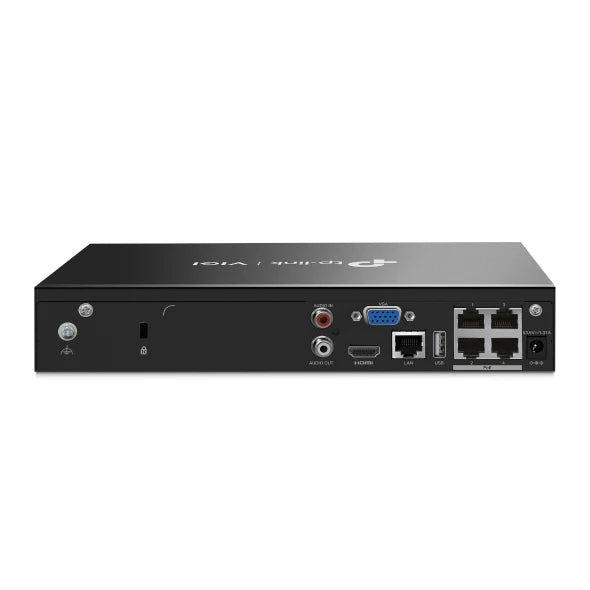

LAN connection One 10/100Mbps Ethernet port, separate from four camera PoE ports
USB Two USB 2.0 ports
Audio connections One RCA audio input and one RCA audio output
Interoperability ONVIF Profile S; CGI
Management VIGI App and VIGI Security Manager
Power supply 53.5V DC / 1.31A
Operating temperature NVR: -10°C to 55°C; power adapter: 0°C to 40°C
Operating humidity 10–90% RH, non-condensing
Dimensions 246.2 × 148.2 × 45mm

Playback specification note: The linked datasheet has conflicting aggregate-resolution footnotes: its overview references a 5MP playback limit, while its detailed specifications reference 16MP. The decoding configurations above are listed separately in the detailed specifications. Confirm simultaneous playback performance with the supplier for your camera resolution, frame rate and hardware version. Do not assume four 8MP cameras can be displayed or played back simultaneously at full resolution and maximum frame rate. Camera recording support, HDMI output resolution and decoding capacity are different specifications.
