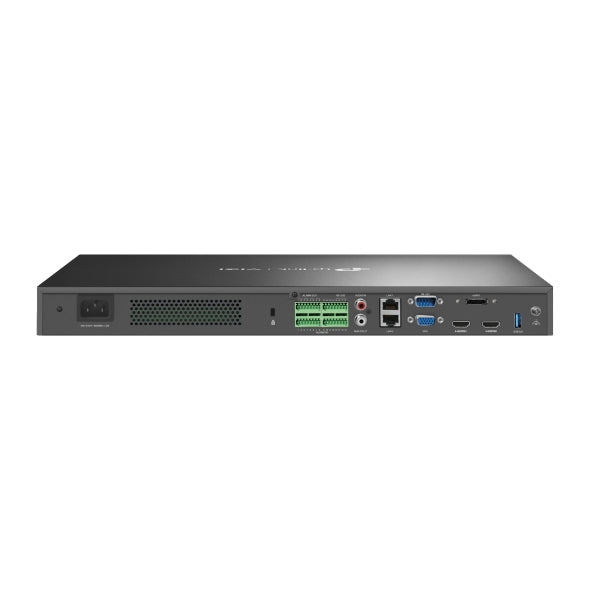

TP-Link VIGI NVR4064H 64-Channel Network Video Recorder, Non-PoE
Centralise a larger camera installation with the TP-Link VIGI NVR4064H. Connect up to sixty-four compatible IP cameras, manage recordings across four HDD bays and use independent display outputs for local monitoring. When you need to review an incident, search by date, event or tag and export the relevant clip without working through every recording.
No built-in PoE ports: Cameras require suitable external PoE switches, injectors or their own compatible power supplies. The recorder's two LAN ports provide network connectivity, not camera power.
Key features
- Sixty-four camera inputs: Connect up to sixty-four compatible IP cameras and select layouts from single-camera to 64-view, within decoding limits.
- Configurable bandwidth: Default bandwidth is 260Mbps incoming and 180Mbps outgoing. Extended Bandwidth Mode supports 320Mbps incoming and 320Mbps outgoing.
- 4K HDMI output: HDMI1 supports up to 3840 × 2160 at 30Hz. HDMI2 and VGA each support up to 1920 × 1080 at 60Hz.
- Independent display outputs: Use HDMI1 with HDMI2, or HDMI1 with VGA. HDMI2 and VGA cannot operate simultaneously; HDMI2 takes precedence when both are connected.
- Resolution-aware decoding: At 25fps, the datasheet lists sixteen 2MP, thirty-two 720p or sixty-four D1 streams. Higher-resolution decoding at 30fps includes four 8MP streams. Match viewing layouts to the supported decoding configuration.
- Up to sixteen-channel playback: Review recordings with variable speed, frame-by-frame control, digital zoom and clip export. Sixty-four camera inputs do not mean sixty-four-channel synchronous playback.
- Four HDD bays: Four SATA interfaces support up to 16TB per HDD. Drives are purchased separately.
- Efficient compression: H.265+/H.265/H.264+/H.264 options help manage storage and bandwidth with compatible cameras and settings.
- Dual gigabit networking: Two 10/100/1000Mbps Ethernet interfaces connect the recorder to your network.
- Remote management: Manage the recorder and cameras through the web interface, NVR interface, VIGI App and VIGI Security Manager.
- Camera-dependent smart events: Supports compatible-camera motion, tampering, scene change, line crossing, intrusion, region entry/exit, loitering, abandoned/removed object, human/vehicle and abnormal sound detection.
- Alarm and audio integration: Sixteen alarm inputs, four alarm outputs and RCA audio input/output support suitable external equipment. There is no built-in speaker.
- ONVIF interoperability: ONVIF Profile S and CGI support compatible camera integration. Individual features depend on the connected camera.
Technical specifications
| Model | VIGI NVR4064H (UN) 1.0 |
|---|---|
| IP video inputs | 64 channels; no built-in PoE ports |
| Default bandwidth | 260Mbps incoming; 180Mbps outgoing |
| Extended Bandwidth Mode | 320Mbps incoming; 320Mbps outgoing |
| HDMI1 output | 3840 × 2160 at 30Hz; 1920 × 1080, 1680 × 1050, 1440 × 900, 1280 × 1024 or 1280 × 720 at 60Hz |
| HDMI2 output | 1920 × 1080, 1680 × 1050, 1440 × 900, 1280 × 1024 or 1280 × 720 at 60Hz |
| VGA output | 1920 × 1080, 1680 × 1050, 1440 × 900, 1280 × 1024 or 1280 × 720 at 60Hz |
| Display operation | Independent HDMI1/HDMI2 or HDMI1/VGA output; HDMI2 and VGA cannot operate simultaneously |
| Multi-view layouts | 1/4/6/8/9/16/25/32/36/49/64 |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Audio compression | G.711A/G.711U/G.726 |
| Recording resolutions | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding at 25fps | 16 × 2MP, 32 × 720p or 64 × D1 streams |
| Higher-resolution decoding | 4 × 8MP at 30fps. The source's remaining 30fps decoding text is unclear in the available document extraction; confirm those configurations before relying on them. The overview also lists 8 × 4MP capacity. |
| Synchronous playback | Up to 16 channels; fewer channels, or none, may play simultaneously if total resolution exceeds 32MP |
| Recording modes | Manual, scheduled and motion detection |
| Playback modes | Instant, regular, tag and event |
| Playback functions | Play/pause/stop, fast forward/backward, frame-by-frame, full screen, video clip/export, digital zoom, recording lock and audio on/off |
| Backup modes | Regular and video clip backup |
| Storage | 4 × SATA interfaces; up to 16TB per HDD; HDDs not included |
| Network interfaces | 2 × RJ45 10/100/1000Mbps self-adaptive Ethernet |
| USB | Front: 2 × USB 2.0; rear: 1 × USB 3.0 |
| Audio interfaces | 1 × RCA input; 1 × RCA output; no built-in speaker |
| Alarm interfaces | 16 inputs / 4 outputs |
| Other connections | RS232, AC jack, reset button and eSATA |
| Interoperability | ONVIF Profile S; CGI |
| Mobile access | Android and iOS |
| Listed browser support | Chrome 57+, Firefox 52+, Edge 91+ |
| General alarms | Motion, tampering, scene change, line crossing, intrusion, region entry/exit, loitering, abandoned/removed object, vehicle, human, abnormal sound and Smart Frame; compatible camera support required |
| Anomaly alarms | Video loss, offline/IP conflict, disk, login and fan exceptions; camera-related functions require suitable cameras |
| Alarm linkage | Recording, white-light alarm, buzzer, log and audible alarm; camera-dependent functions require compatible cameras |
| Power supply | 100–240V AC, 50–60Hz, 1.5A |
| Listed power consumption | 6.95W without disk; 48.38W with disk |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -40°C to 70°C |
| Humidity | Operating and storage: 10–90% RH, non-condensing |
| Dimensions | 440 × 330 × 44mm (W × D × H) |
| Weight | Net 4.0kg; gross 5.0kg |
Playback note: Camera input count, monitor output resolution, decoding capacity and synchronous playback are separate limits. The datasheet warns that fewer than sixteen channels, or none, may play simultaneously when total playback resolution exceeds 32MP. Do not assume all sixty-four cameras can be displayed or played back at full recording resolution at once.
