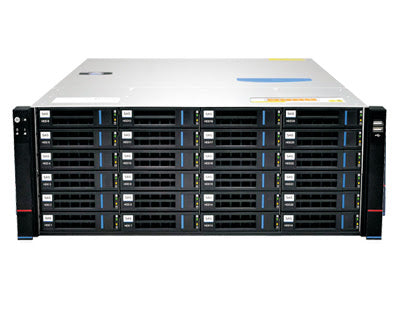

TVT All-In-One Server, 2048ch, 24 SATA, VGA O/P, Linux OS, NDAA

Features

• High-performance X86 hardware platform, stable and reliable
• Preset software before delivery; All-in-One simple deployment
• Supports the device access of TVT and other famous manufacturers in the industry
• Supports ONVIF protocol
• Supports device auto-report
• Supports adding devices through IP address, IP address segment, URL, domain name and serial number
• Automatically search devices and quickly adding devices
• Supports standard, widescreen and customized screen display modes
• Supports instant playback and alarm preview
• Supports corridor mode
• Supports fisheye mode
• Supports PTZ direction control and focus control; supports setting and calling preset and cruise
• Supports voice monitoring, two-way talk and broadcast
• Supports record search, playback and downloading from device and control center
• Supports record search and playback by time, channel, event and tag
• Supports time-slice playback
• Supports record clip and backup; Support backup by time and event
• Supports video search, playback and downloading from SD card of the IPC
• Supports multi-level images and online E-map
• Supports TV wall management, including splicing, PIP, roaming and triggering video on TV wall
• Supports auto-switch plan and camera group on TV wall
• Supports various alarm types and alarm linkages
• Supports multi-level, multi-area and multi-user permission management
• Supports log management, including notices and alarms device's online and offline status
• Supports Android/iOS mobile APP
• Integrated Intel Xeon E3-1220V5 high-performance 4 core processor, up to 8GT/s data transfer rate, 64 bit expansion, I/O acceleration, Turbo, Hyper-Threading Technology
• 4 memory card slots, up to 64GB DDR4-1866/2133MHz ECC
• 2 gigabit Ethernet ports; support I/OA technology; support link aggregation and binding redundancy; support iKVM;IPMI×1
• 12Gbps SAS Expander, 12Gbps RAID card (RAID 0, 1, 5, 6 supported)
• 24 *3.5 inch hot-pluggable HDD slots, up to 256TB
• 3 control expansion slots: 1*PCI-E3.0x16(x8); 1*PCIE3.0x8; 1*PCE-E3.0x8(x4)
• 800W 1+1 redundant power supply
• Monitoring various status of the storage server, such as connection status, network status, hardware status and so on; judging the fault level according to the buzzer sound; timely recording event information and operation logs of the device; providing full solution of real-time monitor and alarm of the device
• Independent IPMI interface; supports iKVM, remote startup and shutdown and software installation services
• Provide TPM interface which supports TPM standard security chip, so that the device can be protected effectively in case of the illegal user access
• Embedded device access and transfer modules without extra transfer server access

Download

TD-A624E-E Datasheet
