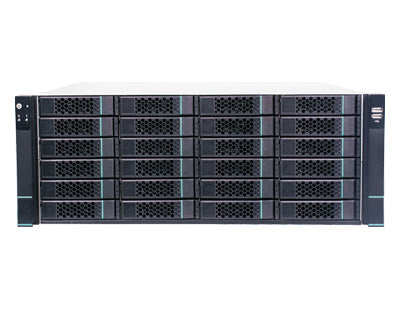

TVT Enterprise Mass Storage Server 24 HDD Bays

TVT Enterprise Mass Storage Server 24 HDD Bays

Features

High Performance

• Integrated Intel Xeon E3-1220V5 high-performance 4 core processor, up to 8GT/s data transfer rate, 64 bit expansion, I/O acceleration, Turbo, Hyper-Threading Technology
• 4 memory card slots, up to 64GB DDR4-1866/2133MHz ECC
• 2 gigabit Ethernet ports; supports I/OA technology; supports link aggregation and binding redundancy; supports iKVM;IPMI×1
• 12Gbps SAS Expander, 12Gbps RAID card (RAID0,1,5,6 supported)

High Reliability

• 24 *3.5 inch hot-pluggable HDD slots and 2 built-in 2.5 inch HDD slots, up to 384TB
• 3 control expansion slot: 1*PCI-E3.0x16(x8);1*PCI-E3.0x8; 1*PCE-E3.0x8(x4)
  800W 1+1 redundant power supply
• Support hot backup (fail-over) via the management server

Easy to Manage

• Monitoring various status of the storage server, such as connection status, network status, hardware status and so on; judging the fault level according to the buzzer sound; timely recording event information and operation logs of the device; providing full solution of real-time monitor and alarm of the device
• Independent IPMI interface; supports iKVM, remote startup and shutdown and software installation services
• Provide TPM interface which supports TPM standard security chip, so that the device can be protected effectively in case of the illegal user access
• Embedded device access and transfer modules without extra transfer server access
• Its transfer server doesn’t rely on platform, so the recording will not be interrupted even if the network of the platform server is disconnected

Download

TD-S324E-E Datasheet
