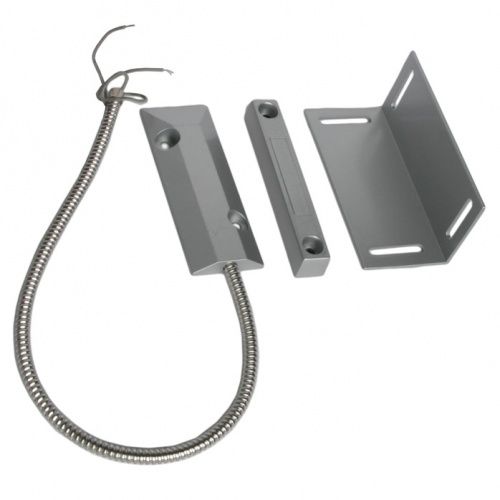

Universal Roller Shutter Door Reed Switch

Universal Roller Shutter Door Reed Switch

Availbility: In Stock
Product Code: CCTV-2000
Regular price $29.00
Regular price $39.00 Sale price $29.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Free Shipping on
Order Over $300*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

Universal Roller Shutter Door Reed Switch

Key Features:

  • Contact: NC, SPST
  • Rating (max): 10W
  • Voltage (max): 100VDC
  • Current (max): 500mA
  • Reed: Epoxy sealed
  • Dimensions:
  • Reed switch 106 x 36.5 x 10mm
  • Magnet 106 x 15.5 x 16mm
  • Bracket 107 x 50 x 50mm
  • Gap 65mm
  • Extra wide gap
  • 350mm armoured cable (stainless)
  • Robust constructed and epoxy sealed to ensure that there is no corrosion
  • Universal mounting with L bracket
