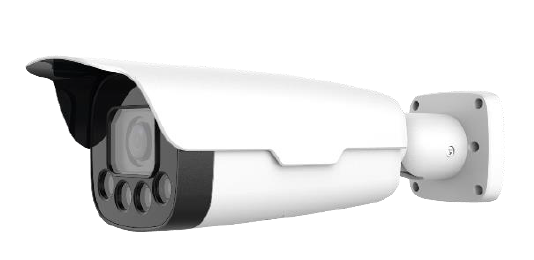

UNV HC121@TCR-08S-Z, UNIVIEW PRO SERIES IP CAMERA WHITE ANPR/LPR DETECTION DISTANCE 8-25M 2MP/1080P BULLET 4.7-47MM STARLIGHT WHITE LED POE+

Key Features:

Optics

• Starlight optical sensor capable of capturing and recognizing vehicles in low light environment when collaborating with
  integrated built-in illuminators
• 2MP industrial quality sensor, 1920*1080 video image resolution
• Motorized zoom lens, flexible adjustment of focus range according to the scene, easy installation
• Automatic gain control, white balance, and WDR, ideal for various lighting conditions

Compression

• Supports 1080P@60fps image collection
• Supports one image stream, triple video streams
• Supports 1080P@60fps live video streams
• H.265
• Custom OSD of various vehicle information

Functions & Feature

• Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries.
• Recognizes vehicle body colors and features (daytime)
• Supports blacklist and whitelist configuration
• Collaborates with lanes to control the entry & exit of vehicles and trigger gate opening
• Supports the switch between road mode and entry/exit mode
• 8GB eMMC, expansion up to 256GB
• Supports edge storage to prevent data loss in case of disconnected network
• Tamper-proof info and records
• Supports identification of fake license plates
• Provides multiple 3rd-party integration methods including SDK and Socket.

Network

• Network adaption ensures effective surveillance even in abnormal environments such as packet loss
• Supports SNMP and SIP
• UNP technology for NAT traversal

Network Security

• Supports user authorization and password, detection of weak password, and account lock-up when failed login attempts reaches the limit
• Supports secure Web access through HTTPS
• Supports RTSP authentication prevents unauthorized video request
• Supports IP address filtering
• Supports gateway ARP protection to prevent MAC address spoofing

Structure

• Provides AC24V/DC12V power supply and supports PoE \Cast aluminum body, efficient heat dissipation
• IP67
• IK10

Download

• Datasheet of HC121@TCR-08S-Z
• IPC3600 Series-Network Mini Dome Cameras Quick Guide-V1.01
• Camera Installation Guide-V1.00
• Network Cameras User Manual-V2.08
