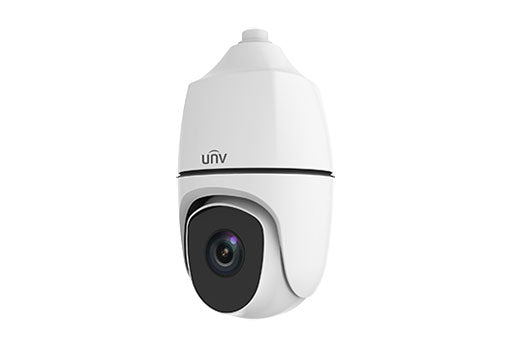

UNV IPC6858ER-X40UP-VF, UNIVIEW PRO SERIES IP CAMERA WHITE AI 8MP/4K SPEED DOME PTZ 5.7-228MM STARLIGHT IR POE++

Key Features:

• High quality image with 8MP,1/1.8’’ CMOS sensor
• 3840*2160@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 40X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 250m (820ft) IR distance
• AC 24V±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
• Alarm 7 in and 2 out, Audio 1 in and 1 out
• IP66 ingress protection

Optics

• 40X Optical Zoom

• Starlight illumination

• Accurate and fast focusing

• Smart IR, up to 250m (820ft) IR distance

• Optical glass window with higher light transmittance

• IR anti-reflection window to increase the infrared transmittance

• Gyroscope

Compression

• 8 Megapixel image

• Ultra 265, H.265, H.264, MJPEG

• Triple streams

• Customized OSD

Network

• ONVIF Conformance

Structure

• Innovative snow-removing functionality

• More effective heat dissipation system

• Intelligent temperature control technology

• IP66

• PoE (IEEE 802.3bt)

Download

• Datasheet of IPC6858ER-X40UP-VF
• IPC3600 Series-Network Mini Dome Cameras Quick Guide-V1.01
• Camera Installation Guide-V1.00
• Network Cameras User Manual-V2.08
