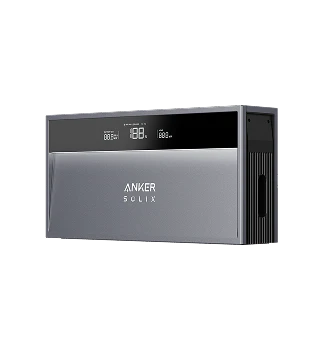

Anker AS-A5101xxx, SOLIX X1 AC-Coupled Power Module
Features:
Battery
- Battery Type: Li-ion
- Battery Voltage Range: 350-450V
- Discharge Power: 6.6kW / 5kW
- Discharge Current: 17.2ADC / 14.3ADC
- Discharge Current: 18.9ADC / 14.3ADC

AC Input / Output (On-Grid)
- Rated Input / Output Power: 6kW / 5kW
- Rated Input / Output Current: 26.1A / 21.74A
- Max Input / Output Apparent Power: 6.6kVA / 5kVA
- Max Input / Output Current: 28.7A / 22.7A
- Rated Input / Output Voltage: 220/230/240VAC
- Rated Frequency: 50/60 Hz
- Power Factor Range: 0.8ind-0.8cap
- THDI (@Rated Power): <3%
AC Output (Off-Grid)
- Rated Output Power: 6kW / 5kW
- Rated Output Current: 26.1A / 21.74A
- Max Output Apparent Power: 6.6kVA / 5kVA
- Max Output Current: 28.7A / 22.7A
- Peak Output Apparent Power (Duration): 12kVA (10s) / 10kVA (10s)
- Rated Output Voltage: 220/230/240VAC
- Frequency Range: 50/60Hz
- THDU (@Linear Load): <3%
- Switchover Time: <10ms
Specifications
- Weight: 20kg
- WxHxD Dimensions: 670 x 335 x 150 mm
-
Noise:
- < 35 dB (Ambient Temperature < 40°C)
- < 40 dB (Ambient Temperature > 40°C)

- Mounting Options: Ground or Wall
- Operation Temperature: -20°C to 55°C
- Relative Humidity: 5% to 95%
- Max Operating Altitude: Up to 2,000 m
- Assembly Ingress Rating: IP66
Video
Download





- FREE SHIPPING ON all orders over $400.00 for NSW customers, anything below is $20.00 per order.
- For ACT, QLD, VIC customers, Free shipping on all orders over $700, anything below is $40 per order.
- For TAS, NT, SA, WA customers, Free shipping on all orders over $800, anything below is $50 per order.
- Freight charges apply to all bulky/heavy items at checkout.
Orders placed before 11am Sydney time each business day are packed and sent the same day. We use the most efficient postage possible which is next business day delivery within the express post network (Australian capital cities and major metro areas- Perth CBD only). Regional areas outside the express post network may be 2-5 days.

Orders are processed Monday through Friday and are shipped within 24 hours of placement, excluding weekends and public holidays. Tracking information is sent via email at 11pm on the day that orders are shipped out.

If you have not received your items within 4 business days of making your order please email us with your full name and order number and we will look into your delivery immediately. In most cases this means that an attempted delivery has occurred and that your parcel is waiting for you at your nearest post office for collection. Please check your spam box for any notification emails from us.

Once your order is packed and leaves our warehouse you will receive an email with a tracking number to track your parcel with:
https://startrack.com.au/track/search
https://auspost.com.au/mypost/track/search
https://www.aramex.com/au/en/track/shipments
If you are not home at the time of delivery, for your convenience, your parcel will be left in a secure place if deemed safe to do so by the delivery driver. If they feel it is not safe to leave, or the parcel is too large, you will be left a card and your parcel will be taken to your local depot.
All quality-related defects on items sold directly by Anker or Anker's authorized resellers are covered by an extensive warranty. The warranty time starts on the date when the products are installed.
Warranty period
| Name | Pictures for Illustration | Warranty Period |
|---|---|---|
|
Anker SOLIX X1 Power Module
 X1-P6K-S X1-H3.68K-S X1-H4.6K-S X1-H5K-S X1-H6K-S X1-H5K-T X1-H8K-T X1-H10K-T X1-H12K-T |  | 10 years |
| Anker SOLIX X1 Battery Module X1-P6K-B05-S X1-P6K-B10-S X1-P6K-B15-S X1-P6K-B20-S X1-P6K-B25-S X1-P6K-B30-S X1-B5-H X1-B10-HC X1-B15-HC X1-B20-HC X1-B25-HC X1-B30-HC |  | 10 years (from the installation date) |
|
WLAN Dongle
 DG-WF-H |  | 5 years |
| Mobile Dongle VD-606L7-WB-AK |  | 5 years (Including data plan) |
|
Power Sensor (Single Phase) SDM230-Modbus v1 |  | 2 years |
|
Power Sensor (Single Phase) DDSU666 |  | 2 years |
|
Power Sensor (Three Phase) DTSU666 |  | 2 years |
Warranty specification
| Anker SOLIX X1 Battery | Energy Retention | Operating Limitation | Warranty Extension |
|---|---|---|---|
| X1-P6K-B05-S | The Battery maintains at least 70% of the initial Battery’s Capacity over the period of ten years (120 months) from the installation date. | Cumulative Discharging Throughput Energy (MWh) is 14MWh; | Not Applicable |
| X1-P6K-B10-S | Cumulative Discharging Throughput Energy (MWh) is 28MWh; | ||
| X1-P6K-B15-S | Cumulative Discharging Throughput Energy (MWh) is 42MWh; | ||
| X1-P6K-B20-S | Cumulative Discharging Throughput Energy (MWh) is 56MWh; | ||
| X1-P6K-B25-S | Cumulative Discharging Throughput Energy (MWh) is 70MWh; | ||
| X1-P6K-B30-S | Cumulative Discharging Throughput Energy (MWh) is 84MWh; | ||
| X1-B5-H | Cumulative Discharging Throughput Energy (MWh) is 14MWh; | ||
| X1-B10-H | Cumulative Discharging Throughput Energy (MWh) is 28MWh; | ||
| X1-B15-H | Cumulative Discharging Throughput Energy (MWh) is 42MWh; | ||
| X1-B20-H | Cumulative Discharging Throughput Energy (MWh) is 56MWh; | ||
| X1-B25-H | Cumulative Discharging Throughput Energy (MWh) is 70MWh; | ||
| X1-B30-H | Cumulative Discharging Throughput Energy (MWh) is 84MWh; |
Notices
-
Anker's limited warranty is restricted to the country of purchase. The limited warranty is void on items taken outside the country they were originally bought in or shipped directly from an authorized purchase. Warranties on products are void after having been fully refunded. Warranties on all replacements follow the same warranty timeframe as the original defective item.
-
The warranty policy for the battery pack ends when either the end of the warranty period has been reached or the throughput has been completed, contingent upon the remaining capacity meeting the specified requirements, with the earliest condition taking precedence. The warranty for the power module DCDC is solely time-bound and is independent of the battery's performance. It is important to note that the warranties for the battery pack and power module are provided separately and are not interconnected.
-
The operation and service life of the battery are related to the working temperature, humidity, and altitude. The recommended working temperature for the battery is 15°C to 30°C (The ambient temperature the product can work at is –20°C to 55°C. For more details on product working environment requirements, please refer to the specification sheet).
-
When the SOC of the battery decreases to 0%, charge the battery within seven days. Any permanent battery damage due to the customer's failure to charge the battery properly is not covered under warranty.
