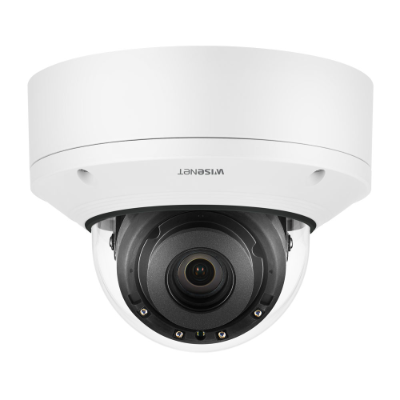

Hanwha Wisenet X Plus 5MP Outdoor Dome Camera, H.265, 50m IR, WDR, 3.6-9.4mm

*Special Order Item*

With cutting-edge WDR technology, the Hanwha HN-XNV-8081R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X Plus series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HN-XNV-8081R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality.

Features:

• Max. 5MP resolution
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day & night (ICR), WDR (120dB)
• Modular structure
• Hallway view, WiseStream II support
• Video and audio analytics, audio playback
• DIS and shock detection with built-in gyro sensor
• IP66/IP67, IK10

Specification

• 1/1.8" 6MP CMOS progressive scan
• 3.9 - 9.4mm motorised varifocal lens F1.2-F2.4
• Colour: 0.07 lux (F1.2, 1/30sec)
• B/W: 0 lux (IR LED on)
• Angular field of view: 92.1 - 38.7 degrees horizontal, 67.2 - 29 degrees vertical and 119.9 - 48.6 degrees diagonal
• Pan range: 0 - 360 degrees
• Tilt range:-45 - 85 degrees
• Rotate range: 0 - 355 degrees
• RJ-45 10/100base-T ethernet
• 12V DC, PoE (IEEE802.3af)
• White, aluminium
• Dimensions: 180 x 125mm
• Weight: 1.75kg

Video

Download

HN-XNV-x081R Datasheet
